用户管理系统

基本概述

    该系统是一个简单的用户管理系统，目前实现的功能不是很多，但是可以扩展。其结构采用的是MVC模式。

MVC模型示意图

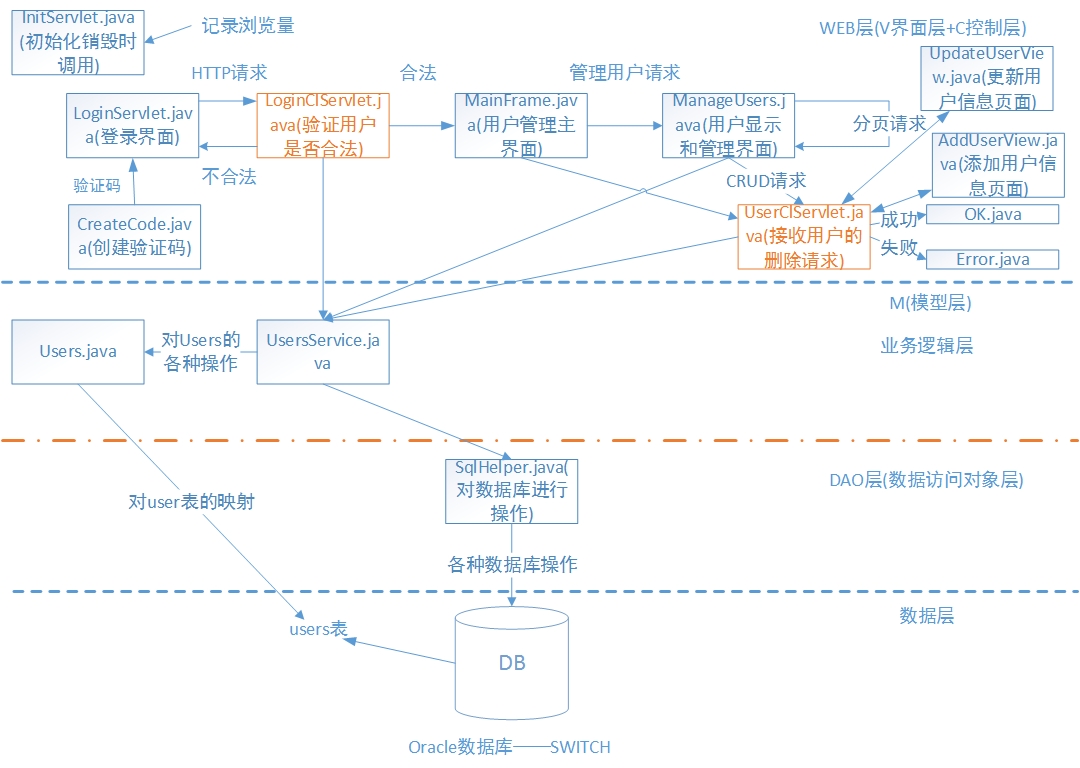

系统框架图

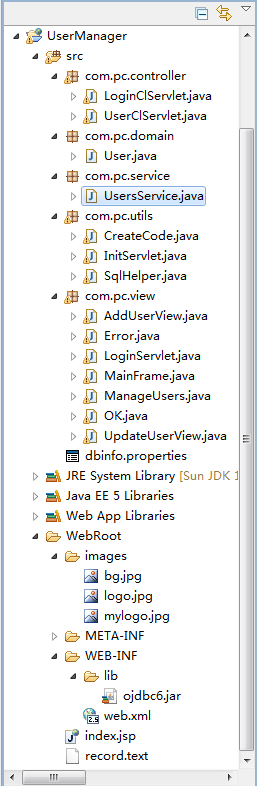

开发目录结构图

注意事项：

数据库采用的是Oracle数据库，用户名，密码之类的在上图的dbinfo.properties文件下更改，使用其他数据库也是在该文件下更改驱动名称。

SQL

create table users
(
  id number primary key,  --id
  username varchar2(32) not null, --用户名
  email varchar2(64) not null,    --电子邮箱
  grade number default 1,         --等级 1->5 1为普通用户，5为管理员
  passwd varchar2(32) not null    --密码
);

--插入测试数据
insert into users values(1,"zhangsan","zhangsan@switch.com",1,"123456");
insert into users values(2,"lisi","lisi@switch.com",1,"123456");
insert into users values(3,"wangwu","wangwu@switch.com",1,"123456");
insert into users values(4,"zhaoliu","zhaoliu@switch.com",1,"123456");
insert into users values(5,"switch","switch@switch.com",5,"switch");
insert into users values(6,"AAA","AAA@switch.com",1,"123456");
insert into users values(7,"BBB","BBB@switch.com",1,"123456");
insert into users values(8,"CCC","CCC@switch.com",1,"123456");
insert into users values(9,"DDD","DDD@switch.com",1,"123456");
insert into users values(10,"EEE","EEE@switch.com",1,"123456");
insert into users values(11,"FFF","FFF@switch.com",1,"123456");
insert into users values(12,"GGG","GGG@switch.com",1,"123456");
insert into users values(13,"HHH","HHH@switch.com",1,"123456");
insert into users values(14,"AAA","AAA@switch.com",1,"123456");
insert into users values(15,"BBB","BBB@switch.com",1,"123456");
insert into users values(16,"CCC","CCC@switch.com",1,"123456");
insert into users values(17,"DDD","DDD@switch.com",1,"123456");
insert into users values(18,"EEE","EEE@switch.com",1,"123456");
insert into users values(19,"FFF","FFF@switch.com",1,"123456");
insert into users values(20,"GGG","GGG@switch.com",1,"123456");
insert into users values(21,"HHH","HHH@switch.com",1,"123456");
insert into users values(22,"HHH","HHH@switch.com",1,"123456");

--分页语句
select * from (select u.*,rownum rn from (select * from users order by id) u where rownum <= 6) where rn >=4;

--序列自增长
create sequence users_seq
start with 100
increment by 1
minvalue 100
nomaxvalue
nocycle
nocache;

源代码：http://download.csdn.net/detail/q547550831/9391557

导入MyEclipse就能用了。

----------参考《韩顺平.细说Servlet》
