搭建ssm框架项目基本原理和主要的配置文件小结

创建时间:2017-06-29 投稿人: 浏览次数:6953

1.springmvc是spring框架的一个模块,springmvc和spring无需通过中间整合层进行整合。springmvc是一个基于mvc的web框架。mvc的思想大家已经很熟悉了,简称“Model-View-Controller”。

下面先简单介绍下我对spring-mvc的理解。

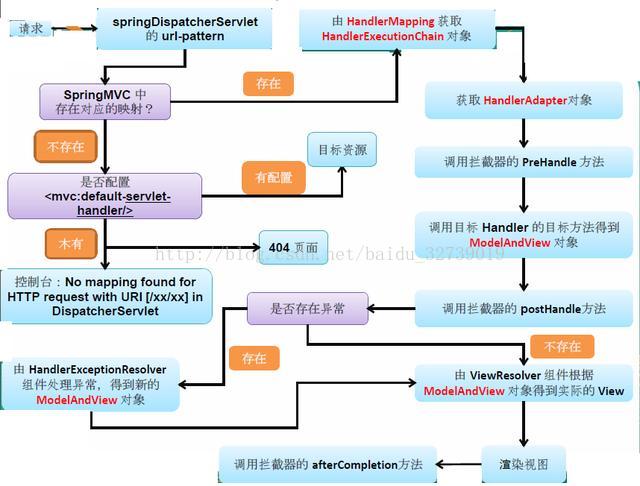

上面这张图大概说明了springmvc的运行过程,看起来可能有点云里雾里的,总结起来就是下面这些:

  1. 客户端发起请求到前端控制器(DispatcherServlet).

  2. 前端控制器请求HandlerMappering 查找Handler,可以根据xml配置、注解进行查找。

  3. DispatcherServlet将请求提交到Controller;

  4. Controller调用业务逻辑处理后,返回ModelAndView;

  5. DispatcherServlet查询一个或多个ViewResoler视图解析器,找到ModelAndView指定的视图;

  6. 视图负责将结果显示到客户端。

这里稍微解释下常用的几个组件名称和作用。

  • 前端控制器(DispatcherServlet):用于接收请求,响应结果

  • 处理器映射器(HandlerMapping):根据请求的url查找Handler(三大核心组件之一)

  • 处理器适配器(HandlerAdapter):按照特定的规则去执行Handler(三大核心组件之一)

  • 处理器(Handler):编写Handler时按照HandlerAdapter的要求去做,这样适配器才可以去正确执行Handler

  • 视图解析器(View resolver):进行视图解析(三大核心组件之一)

  • 视图(View):包括jsp、pdf等

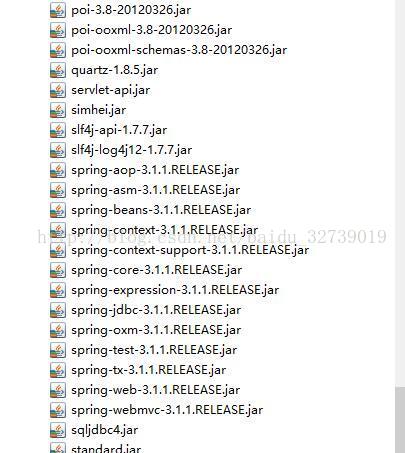

    在了解了上面的基础原理后下面来讲下几个主要的配置文件。项目开发前所需要的jar包提前要导入项目工程里面去。



有几个主要的配置文件,先了解下每个配置文件的作用。

1. web.xml:当服务启动时首先会去加载web.xml这个资源文件,里面包括了对前端控制器、乱码问题等配置。

2.applicatonContext.xml : 一般配置数据源,事物,注解 等。

在这里我使用的是applicatonContext-*.xml的形式将DAO、Service、Transaction层分开配置,这样便于管理

分别为applicatonContext-dao.xml、applicatonContext-service.xml、applicatonContext-transaction.xml

分开配置时,需要在web.xml中配置上下文位置

3.springmvc.xml: 里面配置的是控制层的 ,如视图解析器静态资源, mvc 文件上传,拦截器等。

4.SqlMapConfig.xml: 该配置文件为MyBatis的配置文件,里面无需配置,一切交给spring管理,但是xml文件基础配置要有。


以下是配置文件代码:

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	id="WebApp_ID" version="2.5">
	<display-name>ssm_boot_crm</display-name>
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
		<welcome-file>index.htm</welcome-file>
		<welcome-file>index.jsp</welcome-file>
		<welcome-file>default.html</welcome-file>
		<welcome-file>default.htm</welcome-file>
		<welcome-file>default.jsp</welcome-file>
	</welcome-file-list>
	<!-- 上下文的位置 -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:applicationContext-*.xml</param-value>
	</context-param>
	<!-- Spring的监听器 -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>


	<!-- POST提交过滤器 UTF-8 -->
	<filter>
		<filter-name>encoding</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>

	<filter-mapping>
		<filter-name>encoding</filter-name>
		<url-pattern>*.action</url-pattern>
	</filter-mapping>
	<!-- 前端控制器 -->
	<servlet>
		<servlet-name>crm</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<!-- 此处不配置 默认找 /WEB-INF/[servlet-name]-servlet.xml -->
			<param-value>classpath:springmvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>crm</servlet-name>
		<!-- 1:*.do *.action 拦截以.do结尾的请求 (不拦截 jsp png jpg .js .css)
		2:/ 拦截所有请求 (不拦截.jsp) 建议使用此种 方式 (拦截 .js.css .png) (放行静态资源)
		3:/* 拦截所有请求(包括.jsp) 此种方式 不建议使用 -->
		<url-pattern>*.action</url-pattern>
	</servlet-mapping>
</web-app>


applicationContext-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:task="http://www.springframework.org/schema/task" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
		http://www.springframework.org/schema/mvc
		http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.0.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
		http://www.springframework.org/schema/task
   		http://www.springframework.org/schema/task/spring-task-4.0.xsd
		http://code.alibabatech.com/schema/dubbo
		http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

	<!-- srping框架 配置文件 用于管理数据库连接池 -->
	<!-- 配置 读取properties文件 db.properties -->
	<context:property-placeholder location="classpath:db.properties" />

	<!-- 配置 数据源 用于连接数据库 -->
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
		<!-- 数据库驱动 -->
		<property name="driverClassName" value="${jdbc.driver}" />
		<!-- 连接地址 -->
		<property name="url" value="${jdbc.url}" />
		<!-- 用户名 -->
		<property name="username" value="${jdbc.username}" />
		<!-- 密码 -->
		<property name="password" value="${jdbc.password}" />

	</bean>
	<!-- 配置 Mybatis的工厂 -->
	<bean class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 绑定数据源 -->
		<property name="dataSource" ref="dataSource" />
		<!-- 配置Mybatis的核心 配置文件所在位置 -->
		<property name="configLocation" value="classpath:SqlMapConfig.xml" />
		<!-- 配置pojo别名 -->
		<property name="typeAliasesPackage" value="com.company.ssm.crm.pojo" />
	</bean>

	<!-- 配置  1:原始Dao开发 接口实现类 Mapper.xml 三个
			 2:接口开发 接口 不写实现类 Mapper.xml 二个 (UserDao、ProductDao
		、BrandDao。。。。。。。)
			 3:接口开发、并支持扫描 cn.itcast.core.dao(UserDao。。。。。) 写在此包下即可被扫描到
	-->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.company.ssm.crm.dao" />
	</bean>

</beans>


applicationContext-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:task="http://www.springframework.org/schema/task" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
		http://www.springframework.org/schema/mvc
		http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.0.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
		http://www.springframework.org/schema/task
   		http://www.springframework.org/schema/task/spring-task-4.0.xsd
		http://code.alibabatech.com/schema/dubbo
		http://code.alibabatech.com/schema/dubbo/dubbo.xsd">


	<!-- 配置扫描包 扫描 @Service    spring代理管理业务层 -->
	<context:component-scan base-package="com.company.ssm.crm.service" />
</beans>


applicationContext-transaction.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">


	<!-- spring 事务管理器 -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<!-- 数据源 -->
		<property name="dataSource" ref="dataSource" />
	</bean>

	<!-- 通知 -->
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
		<tx:attributes>
			<!-- 传播行为 -->
			<tx:method name="save*" propagation="REQUIRED" />
			<tx:method name="insert*" propagation="REQUIRED" />
			<tx:method name="add*" propagation="REQUIRED" />
			<tx:method name="create*" propagation="REQUIRED" />
			<tx:method name="delete*" propagation="REQUIRED" />
			<tx:method name="update*" propagation="REQUIRED" />
			<tx:method name="find*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="select*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="get*" propagation="SUPPORTS" read-only="true" />
		</tx:attributes>
	</tx:advice>

	<!-- AOP 切面 -->
	<aop:config>
		<aop:advisor advice-ref="txAdvice"
			pointcut="execution(* cn.itcast.core.service.*.*(..))" />
	</aop:config>

</beans>



springmvc.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:task="http://www.springframework.org/schema/task" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
		http://www.springframework.org/schema/mvc
		http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.0.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
		http://www.springframework.org/schema/task
   		http://www.springframework.org/schema/task/spring-task-4.0.xsd
		http://code.alibabatech.com/schema/dubbo
		http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

	<!-- 加载属性文件 -->
	<context:property-placeholder location="classpath:resource.properties" />
	<!-- 配置扫描 器 -->
	<context:component-scan base-package="com.company.ssm.crm.controller" />
	<!-- 配置处理器映射器 适配器 -->
	<mvc:annotation-driven />

	<!-- 配置视图解释器 jsp -->
	<bean id="jspViewResolver"
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>

</beans>


SqlMapConfig.xml

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:task="http://www.springframework.org/schema/task" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
		http://www.springframework.org/schema/mvc
		http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.0.xsd
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
		http://www.springframework.org/schema/task
   		http://www.springframework.org/schema/task/spring-task-4.0.xsd
		http://code.alibabatech.com/schema/dubbo
		http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

	<!-- 加载属性文件 -->
	<context:property-placeholder location="classpath:resource.properties" />
	<!-- 配置扫描 器 -->
	<context:component-scan base-package="com.company.ssm.crm.controller" />
	<!-- 配置处理器映射器 适配器 -->
	<mvc:annotation-driven />

	<!-- 配置视图解释器 jsp -->
	<bean id="jspViewResolver"
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>

</beans>


db.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/crm?characterEncoding=utf-8
jdbc.username=root
jdbc.password=root



以上就是主要的配置文件的配置,特别注意的是在web.xml中默认加载的资源文件再WEB_INF目录下,如果的你xml不在的话就要写清楚的文件路径,例如写在src目录下面就要写classpath,之前开发过程中忽略了这一点,所以启动一直报错找不到资源文件。

主要参考出处

并结合自己的SSM搭建,小结SSM环境搭建,以便记忆,交流和学习,有什么不妥的地方,欢迎指正、交流


声明:该文观点仅代表作者本人,入门客AI创业平台信息发布平台仅提供信息存储空间服务,如有疑问请联系rumenke@qq.com。
