webpack的commonchunkplugin深度解析以及chunk和module内部结构
因为最近自己也在不断研究这方面的内容,建议在github阅读
1.不添加commonchunkplugin打包的文件
我们的webpack配置如下：
var webpack = require("webpack");
module.exports = {
entry: {
main:"./src/index.js",
main1:"./src/index1.js"
},
output: {
path: "builds",
filename: "[name].entry.chunk.js",
publicPath: "builds/",
},
plugins: [
],
module: {
loaders: [
{
test: /.js$/,
enforce: "pre",
loader: "eslint-loader"
},
{
test: /.js/,
loader: "babel-loader",
include: __dirname + "/src",
},
{
test: /.scss/,
loader: "style-loader!css-loader!sass-loader",
// Or
// loaders: ["style", "css", "sass"],
//这里必须是loader后缀
},
{
test: /.html/,
loader: "html-loader",
}
],
}
};此时我们在build目录下生成如下的六个文件：
此时main和main1表示的都是入口文件打包的结果，而我们的其他文件都是通过require.ensure打包而成的。
2.添加commonchunkplugin打包的文件
更新webpack如下：
var webpack = require("webpack");
module.exports = {
entry: {
main:"./src/index.js",
main1:"./src/index1.js"
},
output: {
path: "builds",
// filename: "[chunkhash].output.js",
filename: "[name].entry.chunk.js",
publicPath: "builds/",
},
plugins: [
new webpack.optimize.CommonsChunkPlugin({
// async: true,
filename:"[name].bundle.js",
children:true,
//对main和main1的文件单独打包，main的chunks集合包含了两个文件，也就是require.ensure后的两个文件
name: ["main","main1"], // Move dependencies to our main file
minChunks: 2, // How many times a dependency must come up before being extracted
}),
],
module: {
loaders: [
{
test: /.js$/,
enforce: "pre",
loader: "eslint-loader"
},
{
test: /.js/,
loader: "babel-loader",
include: __dirname + "/src",
},
{
test: /.scss/,
loader: "style-loader!css-loader!sass-loader",
// Or
// loaders: ["style", "css", "sass"],
//这里必须是loader后缀
},
{
test: /.html/,
loader: "html-loader",
}
],
}

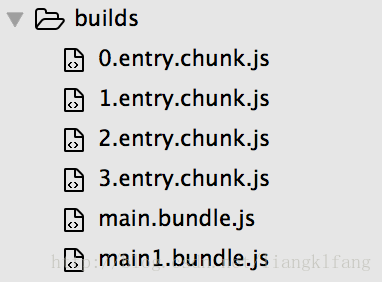

};此时打包的结果为如下：
其中 name:[‘main’,’main1’]的配置表示，我们的main和main1这两个chunk(entry中配置)对应的子chunk中公有的模块会被打包到一起，也就是打包到main.entry.chunk.js和main1.entry.chunk.js中，但是输出文件不再是main.entry.chunk.js和main1.entry.chunk.js，而是filename:’[name].bundle.js’，也就是最后生成的main.bundle.js和main1.bundle.js。
3.当配置children后我们抽取公共模块的chunks集合
这时候在插件commonChunkPlugin中的抽取公共chunk的代码:
commonChunks.forEach(function processCommonChunk(commonChunk, idx) {
let usedChunks;
if(Array.isArray(selectedChunks)) {
usedChunks = chunks.filter(chunk => chunk !== commonChunk && selectedChunks.indexOf(chunk.name) >= 0);
} else if(selectedChunks === false || asyncOption) {
usedChunks = (commonChunk.chunks || []).filter((chunk) => {
// we can only move modules from this chunk if the "commonChunk" is the only parent
return asyncOption || chunk.parents.length === 1;
});
//(1)
var util = require("util");
console.log("------------->commonChunk",util.inspect(commonChunk, {showHidden:true,depth:4}));
//如果name=［"main","main1"］那么表示以入口文件开始单独打包，此时的commonChunk就是我们的main.js和main1.js
//其chunks属性表示所有require.ensure的产生的chunk
} else {
if(commonChunk.parents.length > 0) {
compilation.errors.push(new Error("CommonsChunkPlugin: While running in normal mode it"s not allowed to use a non-entry chunk (" + commonChunk.name + ")"));
return;
}
//如果found>=idx表示该chunk后续会作为一个独立的chunk来处理(独立打包)，所以此处不做修改
//这里的chunks集合是包括所有entry中配置的和在name数组中配置的，如果entry中不存在这个chunk而name中存在，直接创建一个空的chunk！
usedChunks = chunks.filter((chunk) => {
const found = commonChunks.indexOf(chunk);
if(found >= idx) return false;
return chunk.hasRuntime();
});
}
let asyncChunk;
if(asyncOption) {
asyncChunk = compilation.addChunk(typeof asyncOption === "string" ? asyncOption : undefined);
asyncChunk.chunkReason = "async commons chunk";
asyncChunk.extraAsync = true;
asyncChunk.addParent(commonChunk);
commonChunk.addChunk(asyncChunk);
commonChunk = asyncChunk;
}
const reallyUsedModules = [];
if(minChunks !== Infinity) {
const commonModulesCount = [];
const commonModules = [];
usedChunks.forEach((chunk) => {
chunk.modules.forEach((module) => {
const idx = commonModules.indexOf(module);
if(idx < 0) {
commonModules.push(module);
commonModulesCount.push(1);
} else {
commonModulesCount[idx]++;
}
});
});
const _minChunks = (minChunks || Math.max(2, usedChunks.length));
commonModulesCount.forEach((count, idx) => {
const module = commonModules[idx];
if(typeof minChunks === "function") {
if(!minChunks(module, count))
return;
} else if(count < _minChunks) {
return;
}
if(module.chunkCondition && !module.chunkCondition(commonChunk))
return;
reallyUsedModules.push(module);
});
}
if(minSize) {
const size = reallyUsedModules.reduce((a, b) => {
return a + b.size();
}, 0);
if(size < minSize)
return;
}
const reallyUsedChunks = new Set();
reallyUsedModules.forEach((module) => {
usedChunks.forEach((chunk) => {
if(module.removeChunk(chunk)) {
reallyUsedChunks.add(chunk);
}
});
commonChunk.addModule(module);
module.addChunk(commonChunk);
});
if(asyncOption) {
for(const chunk of reallyUsedChunks) {
if(chunk.isInitial()) continue;
chunk.blocks.forEach((block) => {
block.chunks.unshift(commonChunk);
commonChunk.addBlock(block);
});
}
asyncChunk.origins = Array.from(reallyUsedChunks).map((chunk) => {
return chunk.origins.map((origin) => {
const newOrigin = Object.create(origin);
newOrigin.reasons = (origin.reasons || []).slice();
newOrigin.reasons.push("async commons");
return newOrigin;
});
}).reduce((arr, a) => {
arr.push.apply(arr, a);
return arr;
}, []);
} else {
usedChunks.forEach((chunk) => {
chunk.parents = [commonChunk];
chunk.entrypoints.forEach((ep) => {
ep.insertChunk(commonChunk, chunk);
});
commonChunk.addChunk(chunk);
});
}
if(filenameTemplate)
commonChunk.filenameTemplate = filenameTemplate;
});我们看看其中的chunk.hasRuntime函数：
hasRuntime() {
if(this.entrypoints.length === 0) return false;
return this.entrypoints[0].chunks[0] === this;
}我们看看chunk.entrypoints内部表示(见data.js下名字为main的chunk)：
entrypoints:
[ Entrypoint { name: "main", chunks: [ [Circular], [length]: 1 ] },
[length]: 1 ]所以只有顶级chunk才会有执行环境。我们顺便看看在commonchunkplugin的处理方式：
//usedChunks是已经抽取了公共模块的chunk
usedChunks.forEach(function(chunk) {
chunk.parents = [commonChunk];
chunk.entrypoints.forEach(function(ep) {
ep.insertChunk(commonChunk, chunk);
//在每一个移除了公共代码的chunk之前插入commonChunk
});
//每一个移除了公共chunk的chunk.entrypoints添加一个chunk
commonChunk.addChunk(chunk);
});我们顺便也给出EntryPoint的代码：
class Entrypoint {
constructor(name) {
this.name = name;
this.chunks = [];
}
unshiftChunk(chunk) {
this.chunks.unshift(chunk);
chunk.entrypoints.push(this);
}
insertChunk(chunk, before) {
const idx = this.chunks.indexOf(before);
if(idx >= 0) {
this.chunks.splice(idx, 0, chunk);
} else {
throw new Error("before chunk not found");
}
chunk.entrypoints.push(this);
}
getFiles() {
let files = [];
for(let chunkIdx = 0; chunkIdx < this.chunks.length; chunkIdx++) {
for(let fileIdx = 0; fileIdx < this.chunks[chunkIdx].files.length; fileIdx++) {
if(files.indexOf(this.chunks[chunkIdx].files[fileIdx]) === -1) {
files.push(this.chunks[chunkIdx].files[fileIdx]);
}
}
}
return files;
}
}
module.exports = Entrypoint;
我们把上面的那几句代码添加注释来看看具体的打印内容：
usedChunks.forEach(function(chunk,index) {
var util = require("util");
console.log("------------->before"+chunk.name,util.inspect(chunk.entrypoints, {showHidden:true,depth:2}));
chunk.parents = [commonChunk];
chunk.entrypoints.forEach(function(ep) {
ep.insertChunk(commonChunk, chunk);
});
var util = require("util");
console.log("------------->end"+chunk.name,util.inspect(chunk.entrypoints, {showHidden:true,depth:2}));
commonChunk.addChunk(chunk);
});其中webpack中name的配置为 name: [“chunk”,’common1’,’common2’]。下面是控制台打印结果：
------------->beforemain [ Entrypoint {
name: "main",
//一开始我们的main这个chunk.entrypoints集合中只有一个Entrypoint对象，其为"main"
//表示我们的chunk来自于那个入口文件
chunks:
//Entrypoint的chunks集合表示这个Entrypoint产生了哪些chunks
[ Chunk {
id: null,
ids: null,
debugId: 1000,
name: "main",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 1 ] },
[length]: 1 ]
------------->endmain [ Entrypoint {
name: "main",
chunks:
[ Chunk {
//这个chunk对应的入口文件产生了name为‘chunk’的chunk
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1000,
name: "main",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 2 ] },
[length]: 1 ]
//main1和main同样的道理
------------->beforemain1 [ Entrypoint {
name: "main1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1001,
name: "main1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 1 ] },
[length]: 1 ]
------------->endmain1 [ Entrypoint {
name: "main1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1001,
name: "main1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 2 ] },
[length]: 1 ]
//我们的chunk.js的入口文件是两个，分别为main和main1,通过调用两次(usedChunks有几个就是几次)commonChunk.addChunk来完成
//insertChunk修改了entryPoint的chunk，也同时修改了commonChunk的entrypoint
------------->beforechunk [ Entrypoint {
name: "main",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1000,
name: "main",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 2 ] },
Entrypoint {
name: "main1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1001,
name: "main1",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 2 ] },
[length]: 2 ]
------------->endchunk [ Entrypoint {
name: "main",
chunks:
//调用后每一个Entrypoint的chunks集合中都多了一个common1，因为其是commonchunk
[ Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1000,
name: "main",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 3 ] },
Entrypoint {
name: "main1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1001,
name: "main1",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 3 ] },
[length]: 2 ]
//入口文件来自于common1
------------->beforecommon1 [ Entrypoint {
name: "common1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 1 ] },
Entrypoint {
name: "main",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1000,
name: "main",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 3 ] },
Entrypoint {
name: "main1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1001,
name: "main1",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 3 ] },
[length]: 3 ]
------------->endcommon1 [ Entrypoint {
name: "common1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1003,
name: "common2",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 2 ] },
Entrypoint {
name: "main",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1003,
name: "common2",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1000,
name: "main",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 4 ] },
Entrypoint {
name: "main1",
chunks:
[ Chunk {
id: null,
ids: null,
debugId: 1003,
name: "common2",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1002,
name: "common1",
modules: [Object],
entrypoints: [Circular],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1004,
name: "chunk",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object] },
Chunk {
id: null,
ids: null,
debugId: 1001,
name: "main1",
modules: [Object],
entrypoints: [Object],
chunks: [Object],
parents: [Object],
blocks: [Object],
origins: [Object],
files: [Object],
rendered: false,
_removeAndDo: [Object],
addChunk: [Object],
addParent: [Object],
entryModule: [Object] },
[length]: 4 ] },
[length]: 3 ]
所以，每一个Entrypoint.chunks表示这个Entrypoint产生了多少个chunks!chunk.entrypoints表示该chunk来自于哪些Entrypoint！从而形成一个网状结构！
3.1 commonChunkPlugin抽取之前的chunk
在(1)处，仅仅表示我们自己的main或者main1这个chunk的基本信息，包括modules等，还没有经过commonChunkPlugin进行抽取，具体内容参见data.js。
其中chunk的内部结构如下：
Chunk {
id: null,
ids: null,
debugId: 1000,
name: "main",
//chunk对应的name
modules: [],
//该chunk来自于哪些module,main这个chunk来自于src/index.js,该module包含两个RequireEnsureDependenciesBlock
entrypoints:
[ Entrypoint { name: "main", chunks: [ [Circular], [length]: 1 ] },
[length]: 1 ],
//入口文件为main:"./src/index.js",而entryPoint对应的chunk为对当前chunk的循环引用
chunks:[],//当前chunk的子级chunks有哪些，如require.ensure都是当前chunk的子级chunk
parents: [ [length]: 0 ],
//当前chunk的父级chunk集合，没有经过commonChunkPlugin处理main是顶级chunk
blocks: [ [length]: 0 ],
//module.blocks表示模块包含的块RequireEnsureDependenciesBlock等的个数，chunk.block表示当前chunk包含的block的个数
origins:
//当前chunk从哪些模块得到
[ { module:
NormalModule {
dependencies: [ [Object], [length]: 1 ],
blocks: [ [Object], [Object], [length]: 2 ],
variables: [ [length]: 0 ],
context: "/Users/klfang/Desktop/webpack-chunkfilename/src",
reasons: [ [length]: 0 ],
debugId: 1000,
lastId: null,
id: null,
portableId: null,
index: 0,
index2: 12,
depth: 0,
used: true,
usedExports: true,
providedExports: true,
chunks: [ [Circular], [length]: 1 ],
warnings: [ [Object], [length]: 1 ],
dependenciesWarnings: [ [length]: 0 ],
errors: [ [length]: 0 ],
dependenciesErrors: [ [length]: 0 ],
strict: true,
meta: {},
request: "/Users/klfang/Desktop/webpack-chunkfilename/node_modules/babel-loader/lib/index.js!/Users/klfang/Desktop/webpack-chunkfilename/node_modules/eslint-loader/index.js!/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
userRequest: "/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
rawRequest: "./src/index.js",
parser:
Parser {
_plugins: [Object],
options: undefined,
scope: undefined,
state: undefined },
resource: "/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
loaders: [ [Object], [Object], [length]: 2 ],
//module.fileDependencies: An array of source file paths included into a module. This includes the source JavaScript file itself (ex: index.js), and all dependency asset files (stylesheets, images, etc) that it has required. Reviewing dependencies is useful for seeing what source files belong to a module.
//这个module没有引入相应的css/html/image等
fileDependencies:
[ "/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
[length]: 1 ],
contextDependencies: [ [length]: 0 ],
error: null,
_source:
OriginalSource {
_value: ""use strict";
// var $ = require("jquery");
// $("body").html("Hello");
// import $ from "jquery";
// $("body").html("Hello");
// import Button from "./Components/Button";
// const button = new Button("google.com");
// button.render("a");
//code splitting
if (document.querySelectorAll("a").length) {
require.ensure([], function () {
var Button = require("./Components/Button").default;
var button = new Button("google.com");
button.render("a");
});
}
if (document.querySelectorAll("h1").length) {
require.ensure([], function () {
var Header = require("./Components/Header").default;
new Header().render("h1");
});
}",
_name: "/Users/klfang/Desktop/webpack-chunkfilename/node_modules/babel-loader/lib/index.js!/Users/klfang/Desktop/webpack-chunkfilename/node_modules/eslint-loader/index.js!/Users/klfang/Desktop/webpack-chunkfilename/src/index.js" },
assets: {},
built: true,
_cachedSource: null,
issuer: null,
building: undefined,
buildTimestamp: 1487137260364,
cacheable: true },
loc: undefined,
name: "main" },
[length]: 1 ],
files: [ [length]: 0 ],
// An array of output filenames generated by the chunk.
//You may access these asset sources from the compilation.assets table.
//表示这个chunk产生的输出文件，此处为顶级chunk没有输出文件产生
_removeAndDo:{},
addChunk:{},
addParent:{},
//入口模块
entryModule:
NormalModule {
dependencies:
[ ConstDependency {},
[length]: 1 ],
blocks:
[ RequireEnsureDependenciesBlock {
dependencies: [ [Object], [Object], [Object], [length]: 3 ],
blocks: [ [length]: 0 ],
variables: [ [length]: 0 ],
chunkName: null,
chunks: [ [Object], [length]: 1 ],
module: [Circular],
loc: SourceLocation { start: [Object], end: [Object] },
expr:
Node {
type: "CallExpression",
start: 313,
end: 488,
loc: [Object],
range: [Object],
callee: [Object],
arguments: [Object] },
range: [ 345, 486, [length]: 2 ],
chunkNameRange: null,
parent: [Circular] },
RequireEnsureDependenciesBlock {
dependencies: [ [Object], [Object], [Object], [length]: 3 ],
blocks: [ [length]: 0 ],
variables: [ [length]: 0 ],
chunkName: null,
chunks: [ [Object], [length]: 1 ],
module: [Circular],
loc: SourceLocation { start: [Object], end: [Object] },
expr:
Node {
type: "CallExpression",
start: 543,
end: 678,
loc: [Object],
range: [Object],
callee: [Object],
arguments: [Object] },
range: [ 575, 676, [length]: 2 ],
chunkNameRange: null,
parent: [Circular] },
[length]: 2 ],
variables: [ [length]: 0 ],
context: "/Users/klfang/Desktop/webpack-chunkfilename/src",
reasons: [ [length]: 0 ],
debugId: 1000,
lastId: null,
id: null,
portableId: null,
index: 0,
index2: 12,
depth: 0,
used: true,
usedExports: true,
providedExports: true,
chunks: [ [Circular], [length]: 1 ],
warnings: [],
dependenciesWarnings: [ [length]: 0 ],
errors: [ [length]: 0 ],
dependenciesErrors: [ [length]: 0 ],
strict: true,
meta: {},
request: "/Users/klfang/Desktop/webpack-chunkfilename/node_modules/babel-loader/lib/index.js!/Users/klfang/Desktop/webpack-chunkfilename/node_modules/eslint-loader/index.js!/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
userRequest: "/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
rawRequest: "./src/index.js",
parser:
Parser {
_plugins: {},
options: undefined,
scope: undefined,
state: undefined },
resource: "/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
loaders:
[ { loader: "/Users/klfang/Desktop/webpack-chunkfilename/node_modules/babel-loader/lib/index.js" },
{ loader: "/Users/klfang/Desktop/webpack-chunkfilename/node_modules/eslint-loader/index.js" },
[length]: 2 ],
fileDependencies:
[ "/Users/klfang/Desktop/webpack-chunkfilename/src/index.js",
[length]: 1 ],
contextDependencies: [ [length]: 0 ],
error: null,
_source:
OriginalSource {
_value: ""use strict";
// var $ = require("jquery");
// $("body").html("Hello");
// import $ from "jquery";
// $("body").html("Hello");
// import Button from "./Components/Button";
// const button = new Button("google.com");
// button.render("a");
//code splitting
if (document.querySelectorAll("a").length) {
require.ensure([], function () {
var Button = require("./Components/Button").default;
var button = new Button("google.com");
button.render("a");
});
}
if (document.querySelectorAll("h1").length) {
require.ensure([], function () {
var Header = require("./Components/Header").default;
new Header().render("h1");
});
}",
_name: "/Users/klfang/Desktop/webpack-chunkfilename/node_modules/babel-loader/lib/index.js!/Users/klfang/Desktop/webpack-chunkfilename/node_modules/eslint-loader/index.js!/Users/klfang/Desktop/webpack-chunkfilename/src/index.js" },
assets: {},
built: true,
_cachedSource: null,
issuer: null,
building: undefined,
buildTimestamp: 1487137260364,
cacheable: true } }
}3.2 commonChunkPlugin抽取公共代码抽取可视化分析
运行commonsChunkPlugin_Config中的example3代码,其中webpack的配置如下：
var CommonsChunkPlugin = require("webpack/lib/optimize/CommonsChunkPlugin");
module.exports = {
entry: {
main: process.cwd()+"/example3/main.js",
main1: process.cwd()+"/example3/main1.js",
common1:["jquery"],
common2:["vue"]
},
output: {
path: process.cwd()+"/dest/example3",
filename: "[name].js"
},
plugins: [
new CommonsChunkPlugin({
name: ["chunk","common1","common2"],
minChunks:2
})
]
};我们看看commonchunkplugin中的处理方式(else部分)：
if(Array.isArray(selectedChunks)) {
usedChunks = chunks.filter(function(chunk) {
if(chunk === commonChunk) return false;
//此时commonChunk的内容是已经存在于最终的文件中了，如果它不是手动创建的chunk
//去掉下例的jquery,得到usedChunks集合
return selectedChunks.indexOf(chunk.name) >= 0;
});
} else if(selectedChunks === false || asyncOption) {
usedChunks = (commonChunk.chunks || []).filter(function(chunk) {
// we can only move modules from this chunk if the "commonChunk" is the only parent
//只是把一级子chunk的公共内容提取出来，如果有一个子chunk的父级chunk有两个那么不会被提取出来。
return asyncOption || chunk.parents.length === 1;
});
} else {
//如果当前的这个chunk有多个父级chunk，那么不会提取的
if(commonChunk.parents.length > 0) {
compilation.errors.push(new Error("CommonsChunkPlugin: While running in normal mode it"s not allowed to use a non-entry chunk (" + commonChunk.name + ")"));
return;
}
usedChunks = chunks.filter(function(chunk) {
var found = commonChunks.indexOf(chunk);
if(found >= idx) return false;
return chunk.hasRuntime();
});

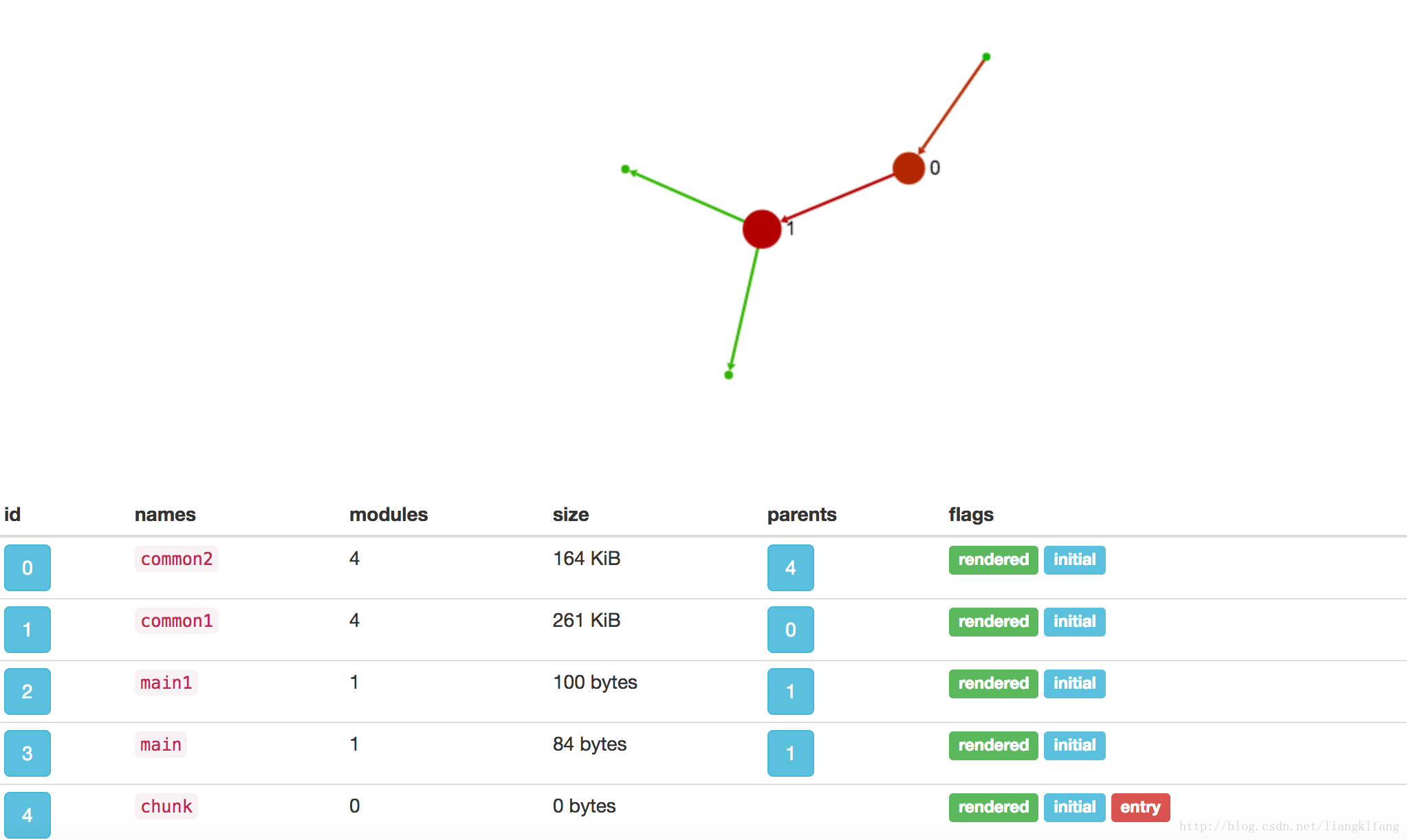

}如果你运行如下命令webpack –profile –json > stats.json并按照本文方式查看，你会发现其实可视化后各个chunk的关系是如下所示的：
这样就很容易知道commonchunkplugin的处理方式了吧。
其中有一点你要特别注意，就是如果吧webpack配置修改为如下:
new CommonsChunkPlugin({
name: ["common1","common2","chunk"],
minChunks:2

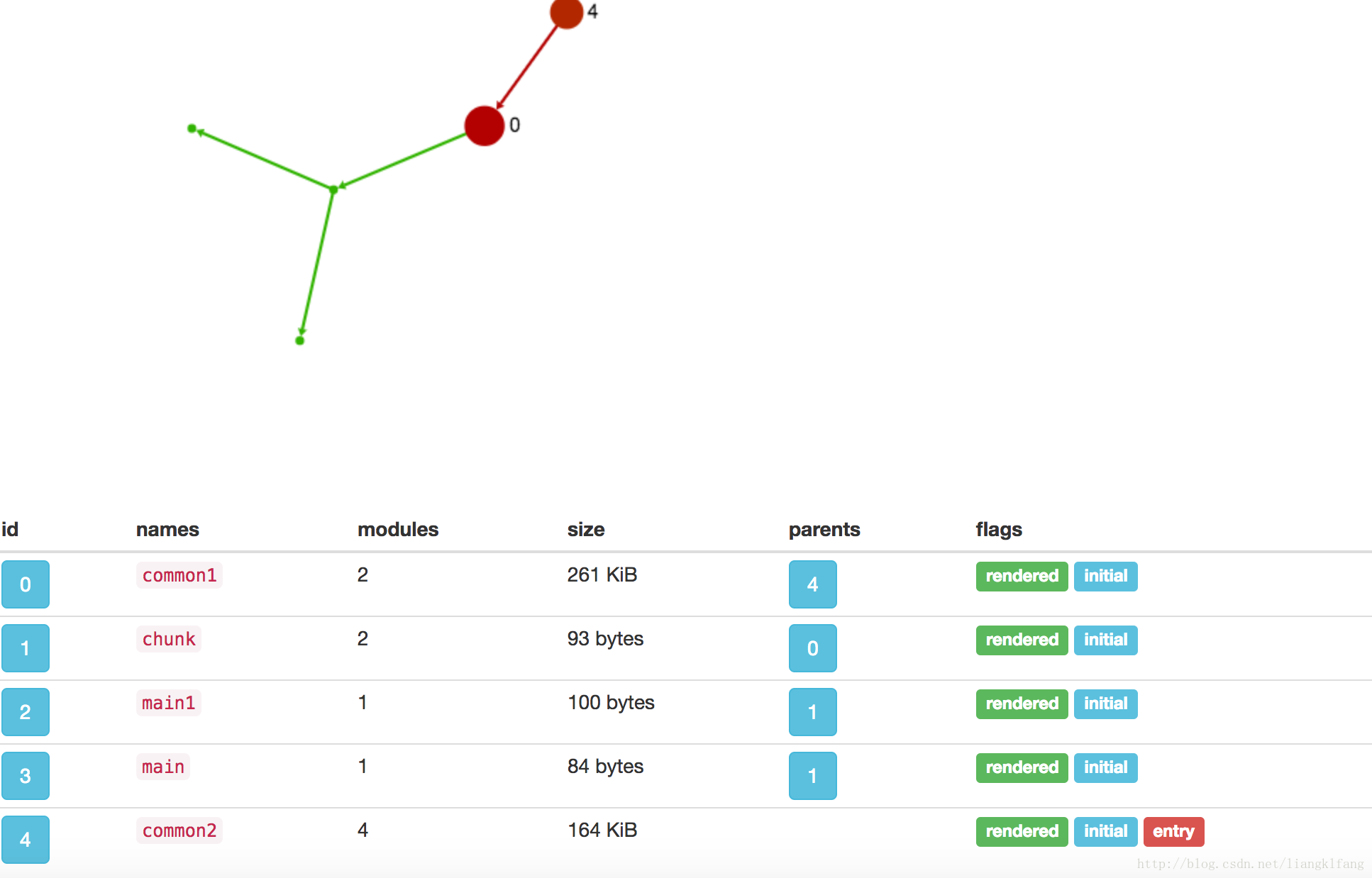

})此时我们继续可视化会得到如下的结果：
所以通过修改name数组中的元素的顺序往往会得到不同的chunk关系！但是需要注意一点，那就是我们的runtime执行环境会被抽取到最上级的chunk中，这里就是chunk.js：
/******/ (function(modules) { // webpackBootstrap
/******/ // install a JSONP callback for chunk loading
/******/ var parentJsonpFunction = window["webpackJsonp"];
/******/ window["webpackJsonp"] = function webpackJsonpCallback(chunkIds, moreModules, executeModules) {
/******/ // add "moreModules" to the modules object,
/******/ // then flag all "chunkIds" as loaded and fire callback
/******/ var moduleId, chunkId, i = 0, resolves = [], result;
/******/ for(;i < chunkIds.length; i++) {
/******/ chunkId = chunkIds[i];
/******/ if(installedChunks[chunkId])
/******/ resolves.push(installedChunks[chunkId][0]);
/******/ installedChunks[chunkId] = 0;
/******/ }
/******/ for(moduleId in moreModules) {
/******/ if(Object.prototype.hasOwnProperty.call(moreModules, moduleId)) {
/******/ modules[moduleId] = moreModules[moduleId];
/******/ }
/******/ }
/******/ if(parentJsonpFunction) parentJsonpFunction(chunkIds, moreModules, executeModules);
/******/ while(resolves.length)
/******/ resolves.shift()();
/******/ if(executeModules) {
/******/ for(i=0; i < executeModules.length; i++) {
/******/ result = __webpack_require__(__webpack_require__.s = executeModules[i]);
/******/ }
/******/ }
/******/ return result;
/******/ };
/******/ // The module cache
/******/ var installedModules = {};
/******/ // objects to store loaded and loading chunks
/******/ var installedChunks = {
/******/ 4: 0
/******/ };
/******/ // The require function
/******/ function __webpack_require__(moduleId) {
/******/ // Check if module is in cache
/******/ if(installedModules[moduleId])
/******/ return installedModules[moduleId].exports;
/******/ // Create a new module (and put it into the cache)
/******/ var module = installedModules[moduleId] = {
/******/ i: moduleId,
/******/ l: false,
/******/ exports: {}
/******/ };
/******/ // Execute the module function
/******/ modules[moduleId].call(module.exports, module, module.exports, __webpack_require__);
/******/ // Flag the module as loaded
/******/ module.l = true;
/******/ // Return the exports of the module
/******/ return module.exports;
/******/ }
/******/ // This file contains only the entry chunk.
/******/ // The chunk loading function for additional chunks
/******/ __webpack_require__.e = function requireEnsure(chunkId) {
/******/ if(installedChunks[chunkId] === 0)
/******/ return Promise.resolve();
/******/ // an Promise means "currently loading".
/******/ if(installedChunks[chunkId]) {
/******/ return installedChunks[chunkId][2];
/******/ }
/******/ // start chunk loading
/******/ var head = document.getElementsByTagName("head")[0];
/******/ var script = document.createElement("script");
/******/ script.type = "text/javascript";
/******/ script.charset = "utf-8";
/******/ script.async = true;
/******/ script.timeout = 120000;
/******/ if (__webpack_require__.nc) {
/******/ script.setAttribute("nonce", __webpack_require__.nc);
/******/ }
/******/ script.src = __webpack_require__.p + "" + chunkId + ".js";
/******/ var timeout = setTimeout(onScriptComplete, 120000);
/******/ script.onerror = script.onload = onScriptComplete;
/******/ function onScriptComplete() {
/******/ // avoid mem leaks in IE.
/******/ script.onerror = script.onload = null;
/******/ clearTimeout(timeout);
/******/ var chunk = installedChunks[chunkId];
/******/ if(chunk !== 0) {
/******/ if(chunk) chunk[1](new Error("Loading chunk " + chunkId + " failed."));
/******/ installedChunks[chunkId] = undefined;
/******/ }
/******/ };
/******/ var promise = new Promise(function(resolve, reject) {
/******/ installedChunks[chunkId] = [resolve, reject];
/******/ });
/******/ installedChunks[chunkId][2] = promise;
/******/ head.appendChild(script);
/******/ return promise;
/******/ };
/******/ // expose the modules object (__webpack_modules__)
/******/ __webpack_require__.m = modules;
/******/ // expose the module cache
/******/ __webpack_require__.c = installedModules;
/******/ // identity function for calling harmony imports with the correct context
/******/ __webpack_require__.i = function(value) { return value; };
/******/ // define getter function for harmony exports
/******/ __webpack_require__.d = function(exports, name, getter) {
/******/ if(!__webpack_require__.o(exports, name)) {
/******/ Object.defineProperty(exports, name, {
/******/ configurable: false,
/******/ enumerable: true,
/******/ get: getter
/******/ });
/******/ }
/******/ };
/******/ // getDefaultExport function for compatibility with non-harmony modules
/******/ __webpack_require__.n = function(module) {
/******/ var getter = module && module.__esModule ?
/******/ function getDefault() { return module["default"]; } :
/******/ function getModuleExports() { return module; };
/******/ __webpack_require__.d(getter, "a", getter);
/******/ return getter;
/******/ };
/******/ // Object.prototype.hasOwnProperty.call
/******/ __webpack_require__.o = function(object, property) { return Object.prototype.hasOwnProperty.call(object, property); };
/******/ // __webpack_public_path__
/******/ __webpack_require__.p = "";
/******/ // on error function for async loading
/******/ __webpack_require__.oe = function(err) { console.error(err); throw err; };
/******/ })
/************************************************************************/
/******/ ([]);声明：该文观点仅代表作者本人，入门客AI创业平台信息发布平台仅提供信息存储空间服务，如有疑问请联系rumenke@qq.com。
- 上一篇： jQuery源码分析之$.inArray()函数
- 下一篇：没有了
